Long-Range WiFi 7 Performance in a Compact Indoor and Outdoor Form

Built for demanding mesh and extended coverage deployments, this compact WiFi 7 access point combines hybrid antenna architecture, 2.5 GbE uplink, and IPX6 outdoor capability to deliver high-efficiency wireless performance across large and distributed environments.

Highlights

Hybrid Long-Range Antenna Architecture

• Integrated omnidirectional and directional 5 GHz antennas
• Directional gain up to 10 dBi for focused backhaul links
• Extended reach up to three times farther in mesh scenarios

Indoor and Outdoor Flexibility

• Dual bottom covers for indoor table stand or outdoor sealed deployment
• IPX6 weatherproof rating when installed with outdoor mount
• Operating temperature range -30 °C to 60 °C

WiFi 7 Efficiency and Throughput

• WiFi 7 support on 2.4 GHz and 5 GHz bands
• 5 GHz data rate up to 4.3 Gbps
• Supports 200+ concurrent clients
• Coverage area up to 140 m²

Key Features

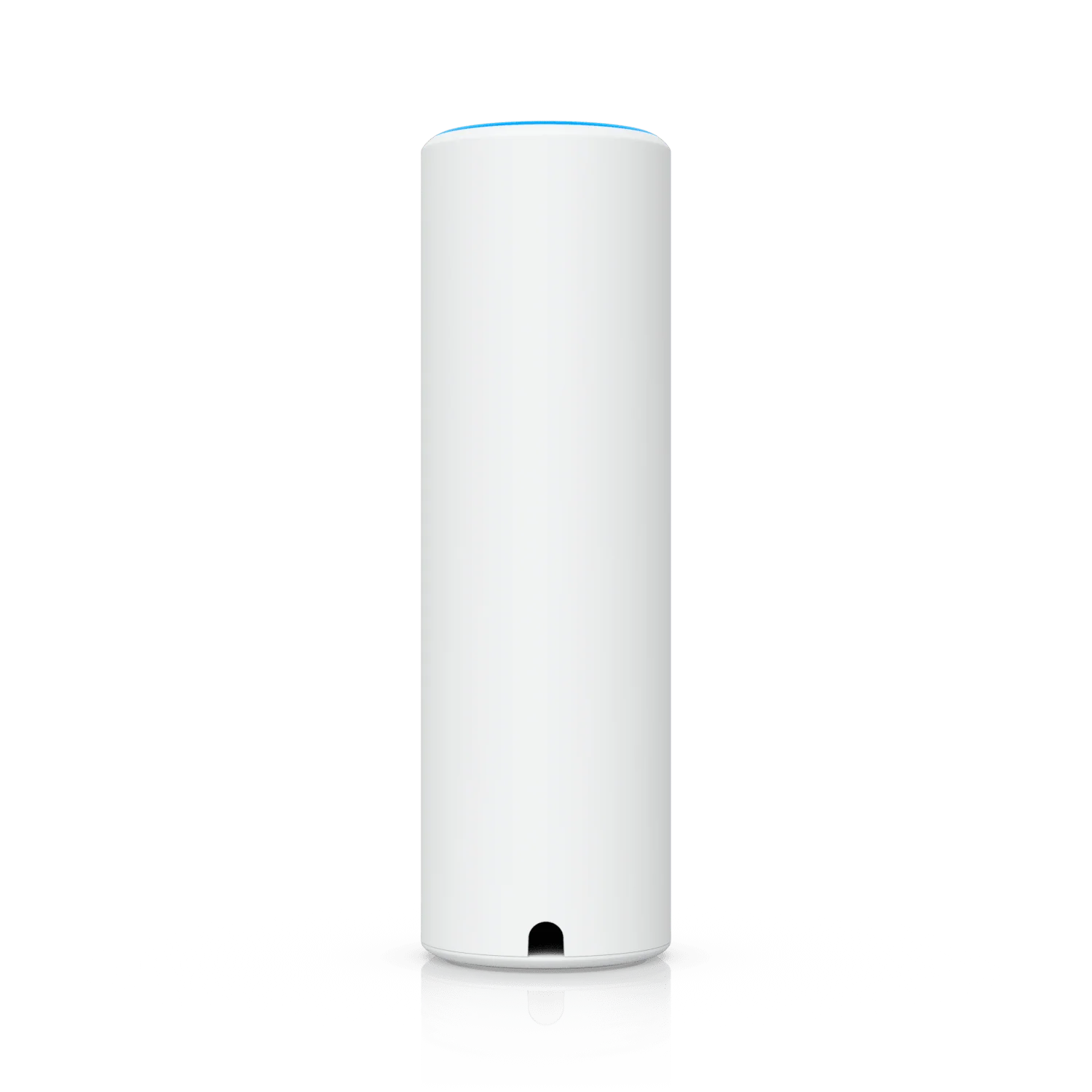

Ubiquiti U7-Mesh BE5000 U7 Mesh 2.5GbE Compact Access Point

• WiFi 7 standard with 4 spatial streams
• NDAA compliant
• Designed for wall, pole, or table stand mounting

High-Performance Wireless Architecture

• 5 GHz 2 × 2 MU-MIMO up to 4.3 Gbps
• 2.4 GHz 2 × 2 MU-MIMO up to 688 Mbps
• 8 BSSIDs per radio
• Channel bandwidth up to 240 MHz under WiFi 7

Mesh-Optimized Design

• LED ring indicates mesh signal strength in Mesh Child mode
• Wireless meshing with advanced radio management
• Band steering and 802.11k, 802.11r, 802.11v support for seamless roaming

Enterprise Security and Access Control

• Private Pre-Shared Key and dynamic RADIUS VLAN
• RADIUS over TLS support
• Guest network isolation and client isolation
• Captive portal with custom branding and voucher authentication
• WiFi scheduling and speed limiting

Hardware and Physical Specifications

• Dimensions ⌀48.5 × 159.5 mm
• Weight 313 g
• Single 2.5 GbE RJ45 uplink
• Maximum power consumption 13 W
• PoE powered with adapter included
• UV-stabilized polycarbonate enclosure

Summary / Conclusion

Ubiquiti U7-Mesh BE5000 U7 Mesh 2.5GbE Compact Access Point delivers WiFi 7 performance with hybrid antenna architecture optimized for long-range and outdoor mesh deployments. With IPX6 protection, 2.5 GbE uplink, and intelligent RF management, it provides scalable, high-efficiency wireless coverage for campuses, hospitality, industrial sites, and large open environments.
